TSMP95000 返回上一页
DESCRIPTION 可以提供我们自己生产的替代品
The TSMP95000 is a two lens miniaturized sensor for
receiving various kinds of modulated IR signals. Two PIN
diodes and a preamplifier are assembled on a lead frame,
the epoxy package is designed as an IR filter. The
modulated output signal, carrier out, can be used for code
learning applications.
This component has not been qualified according to
automotive specifications.
FEATURES
• Photo detector and preamplifier in one package
• AC coupled response from 30 kHz to 60 kHz, all
data formats
• Improved shielding against electrical field
disturbance
• TTL and CMOS compatibility
• Output active low
• Supply voltage 2.0 V to 5.5 V

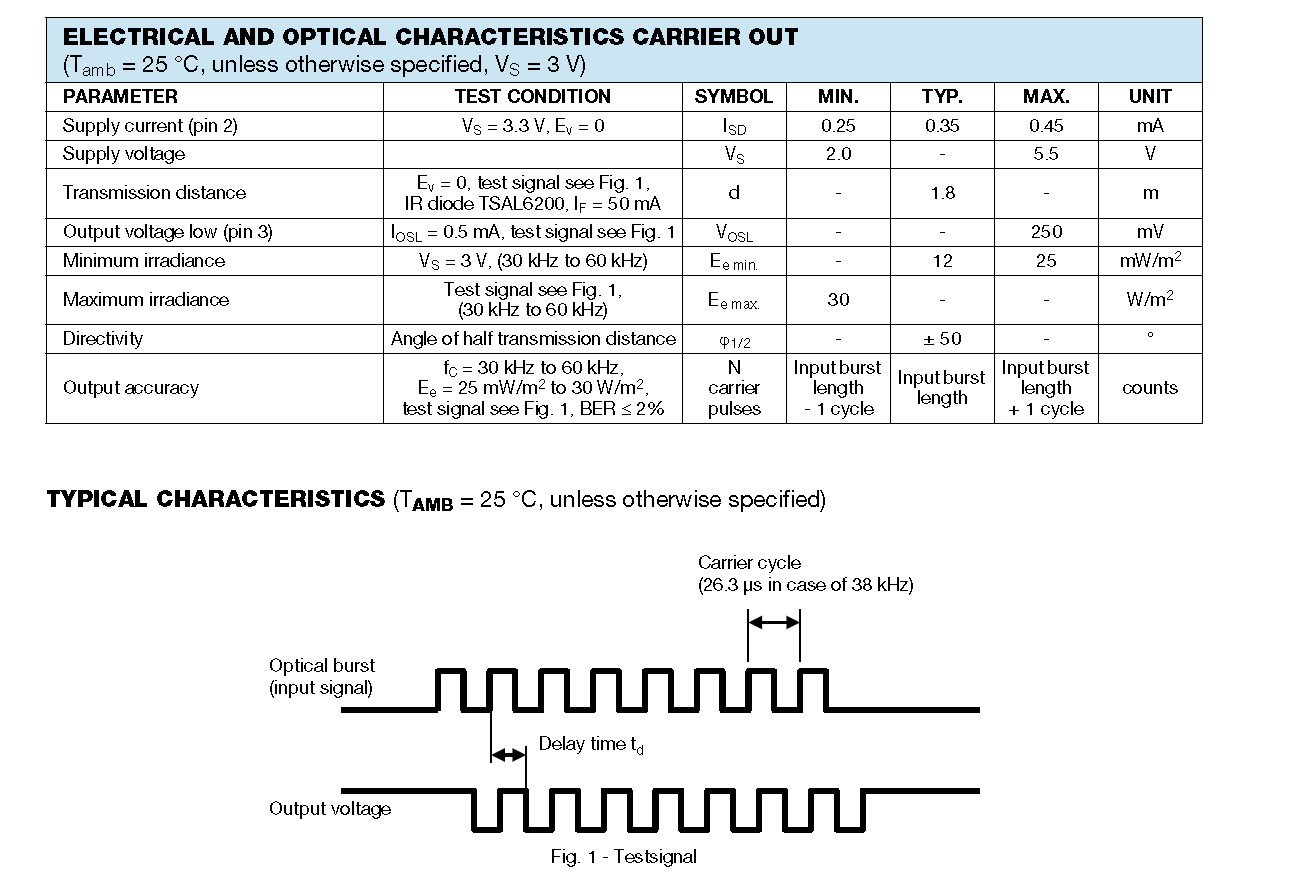

• Carrier out signal for code learning functions
The TSMP95000 is a two lens miniaturized sensor for
receiving various kinds of modulated IR signals. Two PIN
diodes and a preamplifier are assembled on a lead frame,
the epoxy package is designed as an IR filter. The
modulated output signal, carrier out, can be used for code
learning applications.
This component has not been qualified according to
automotive specifications.
FEATURES
• Photo detector and preamplifier in one package
• AC coupled response from 30 kHz to 60 kHz, all
data formats
• Improved shielding against electrical field
disturbance
• TTL and CMOS compatibility
• Output active low
• Supply voltage 2.0 V to 5.5 V
• Carrier out signal for code learning functions
